Air Header
Overview

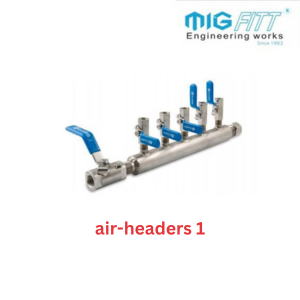

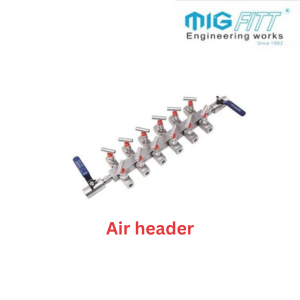

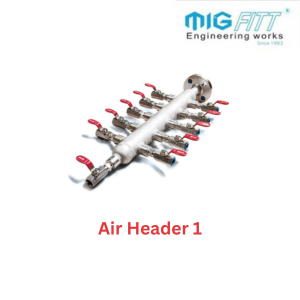

We offer Air Headers that replace many unit valve assemblies that normally operate from one source. The Air Headers are suitable for use with a variety of outlet take-off valves. The inlet-connection can be screw-able. The drain-valve of the system is at the manifold exit and the manifolds can be supplied with a bracket or U clamp for ease of wall mounting.
Air headers or distribution manifolds are common components for air source distribution to distribute a single air source to multiple pipelines. Air headers (FITOK AH Series) are manufactured from tubing, and distribution manifolds (FITOK CM Series) are processed from bars. The air header distribution
manifold has greater volume capacity that assists in handling fluctuation in air compressors. The air compressor header also provides a guaranteed full penetration weld. There are types of AIR HEADER as per customer, 6 way air header, 4 way air headers. Air Header With Ball Valve is used in shipping and marine, oil and gas, and various other industries.
Benefits of Services
| Specification for air headers : | ||
| M.O.C | : | SS316 / SS304 / CS |
| Size | : | 11/2″ / 2″ – SCH40 / SCH80 |
| Inlet | : | ANSI B 16.5 , 150# RF 1″ NB Flange /1″ NPT (F) 3 Peice Union |
| Distribution Ports | : | Size -�” / �” , Ports – 6 / 8 / 10 / 12 / 16 |
| Outlet | : | �” NPT (F) , SS316 / SS304 Ball Valve With �” NPT(M) Plug |
| Other | : | We can also manufacture according to customer�s sample (other specification). |
Product Details
Air Header
Type Provide
